Sogemi Engineering Srl


Output capacity starting from 10 t/h up to 100 t/h.

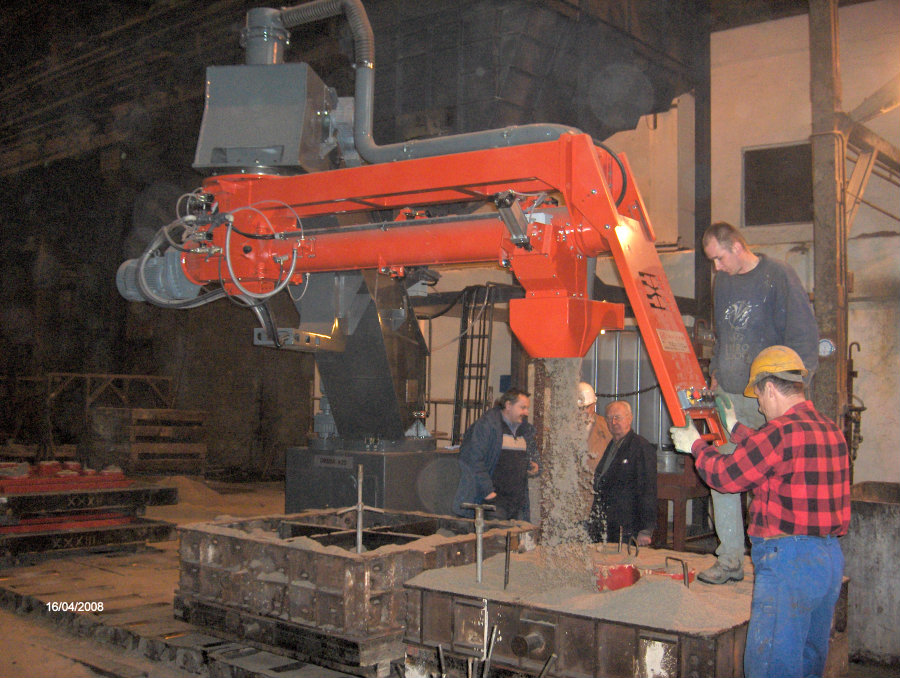

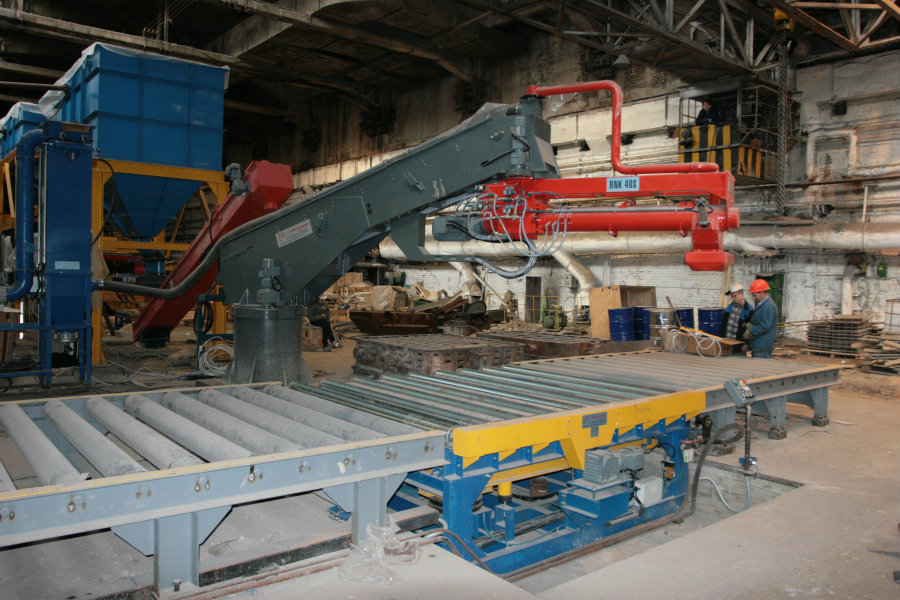

Mixers with double arms: the first arm is for sand transport the second is for mixing the sand with binders.

Available models with different lengths from 4 mt up to 9 mt.

  • Book opening type of the mixing arm.
  • Lining of stainless steel in the mixer arm.
  • Half moon mixing blade with lining carry- over.
  • Discharge outlet valve to have a perfect agglomeration also for the first sand.
  • Autocleaning system by means of a nebulization of a inhibitor inside the mixing arm.

By request a wide range of optional can be installed:

  • Smart control of the output of the binders and autoregulation between the real quantity of binders and the set points fixed.
  • Blend control between two catalysts (fast and slow ) depending on the environmental temperature.
  • Motorization of one or both arms.
  • Remote control by radio.

Apart these features all Sogemi mixers are equipped with high quality components : as Sew eurodrive motoreducer, Skf bearings , Siemens PLc.
